Description

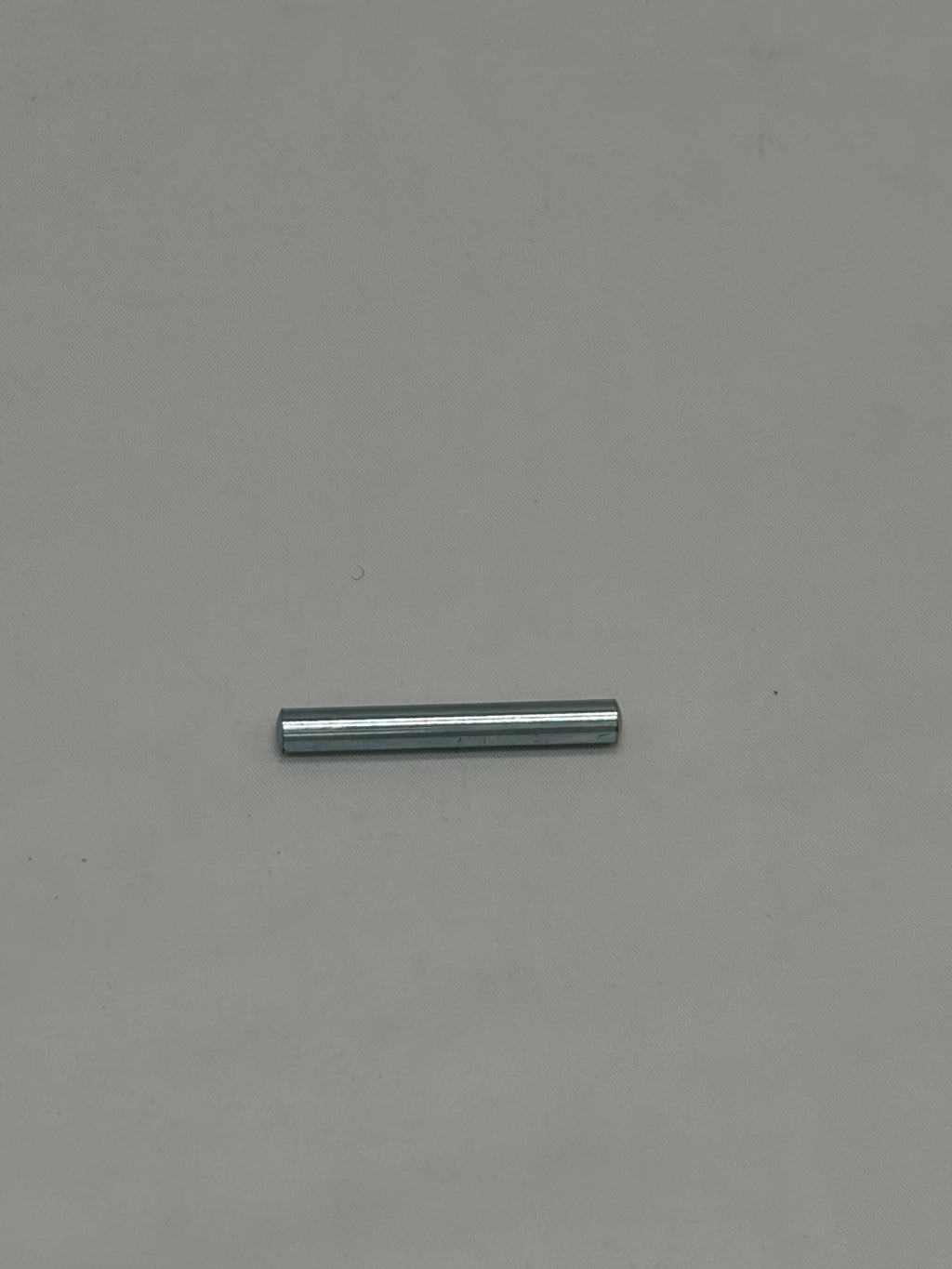

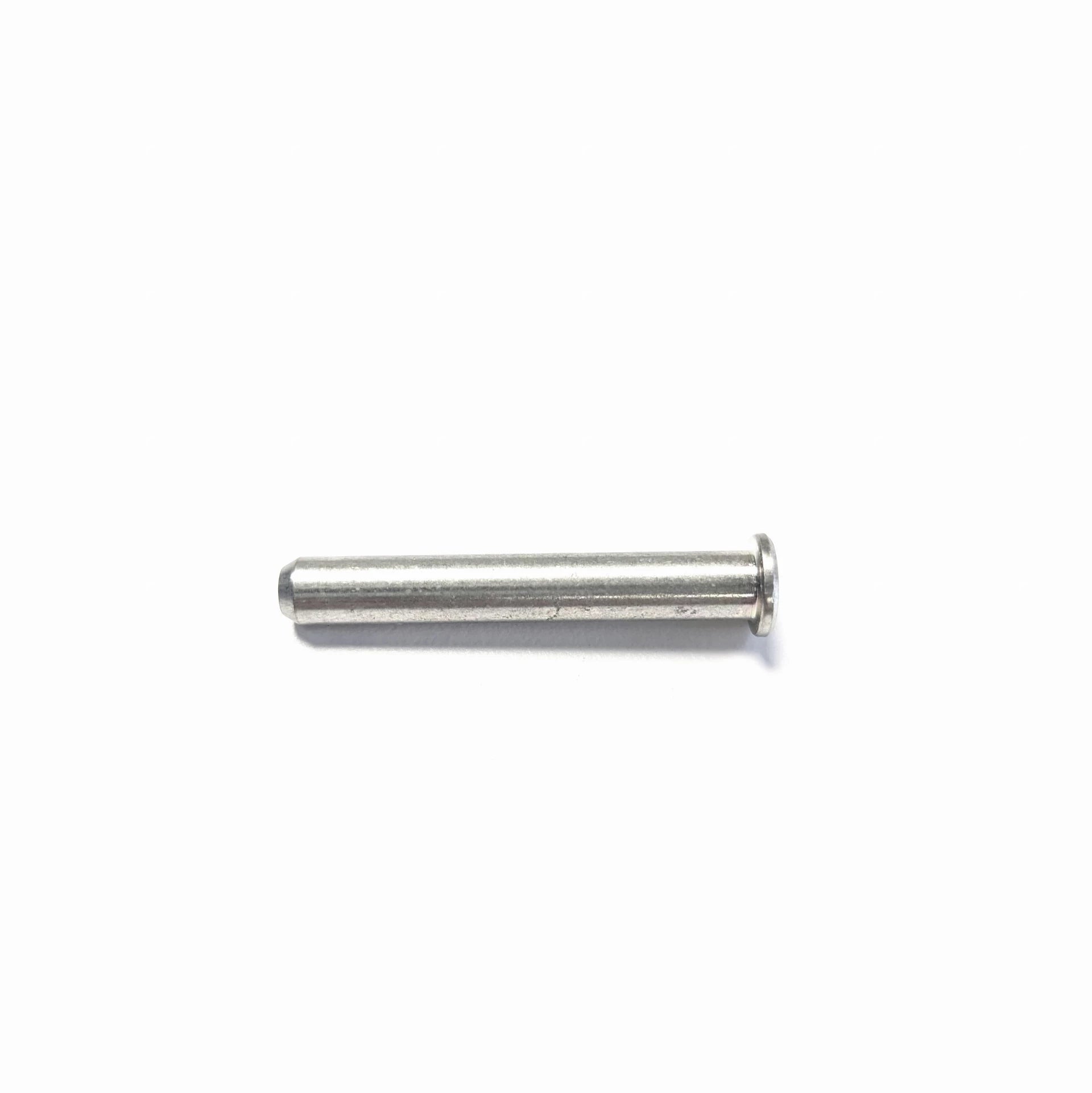

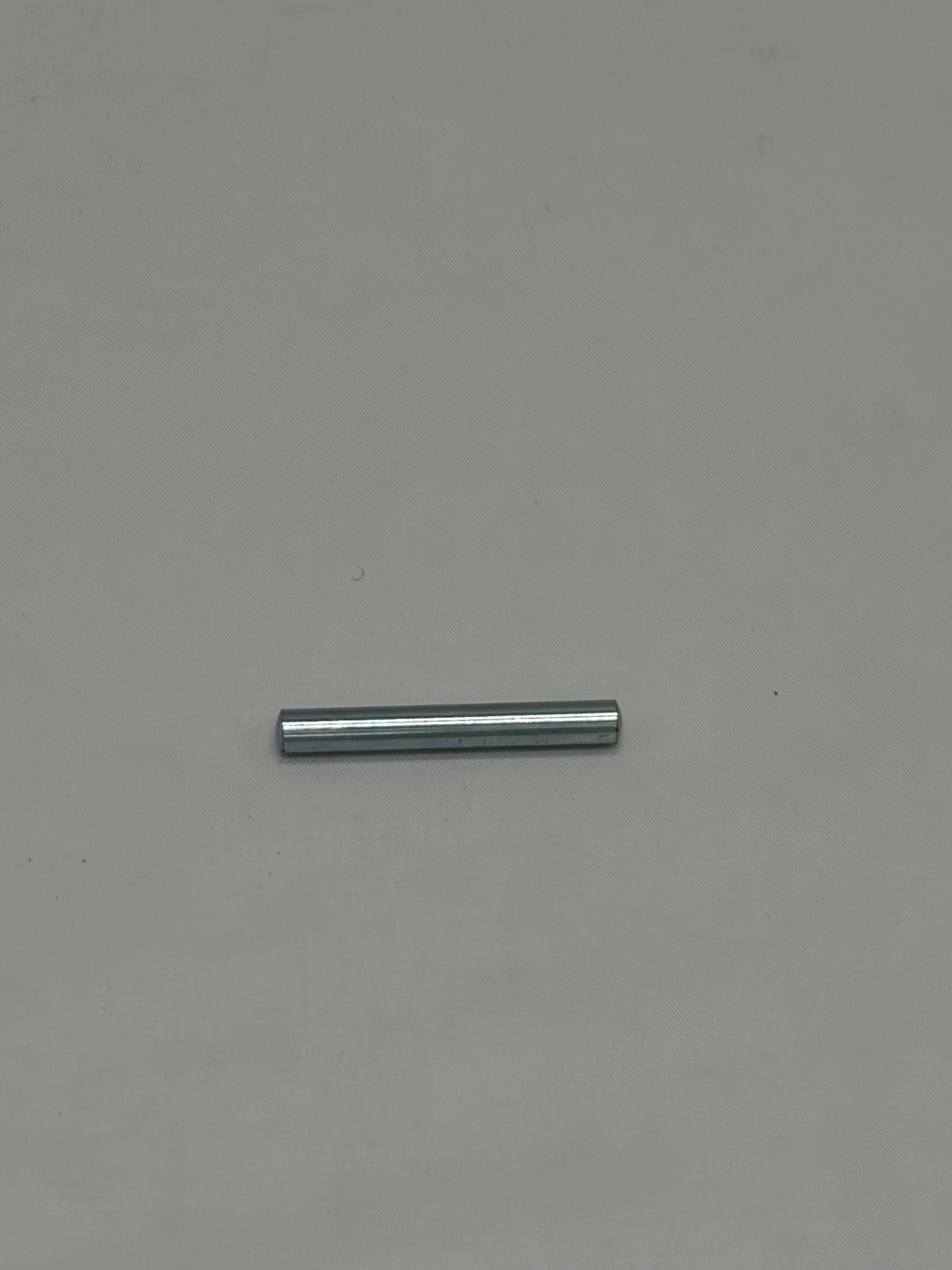

This pin is 6mm diameter and available in a number of lengths, conforms to DIN 1434 / ISO 22341, has a small head, and does not have an eye.

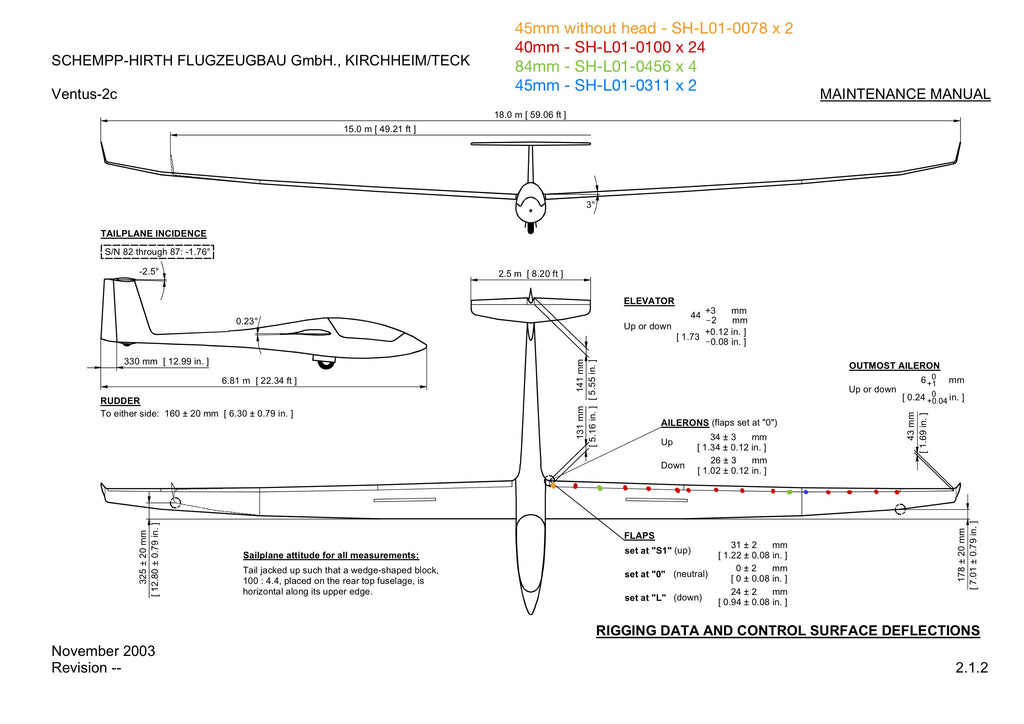

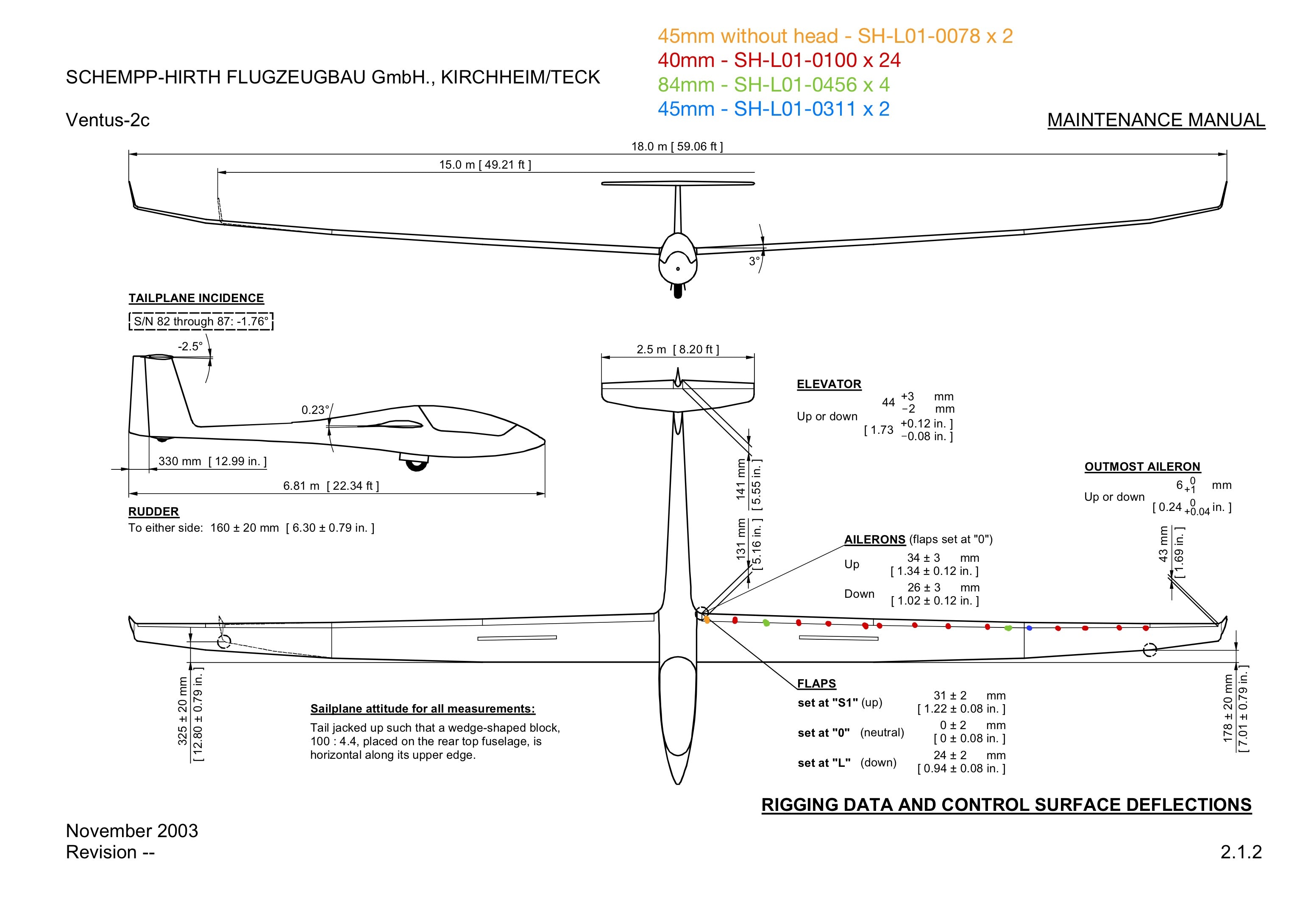

It is used for the flap and aileron bearing of several gliders, including the Discus-2, Ventus-2, Ventus-3, all Duo Discus and Arcus. Various types of axles and pins are used for each ailerons, so please make sure to carefully check which ones you need.
This is best replaced with the matching PTFE lined bush in the control hinge. 3 sizes are available
6x6mm - SH-L02-0003
6x8mm - SH-L02-0004
6x10mm - SH-L02-0005
