Description

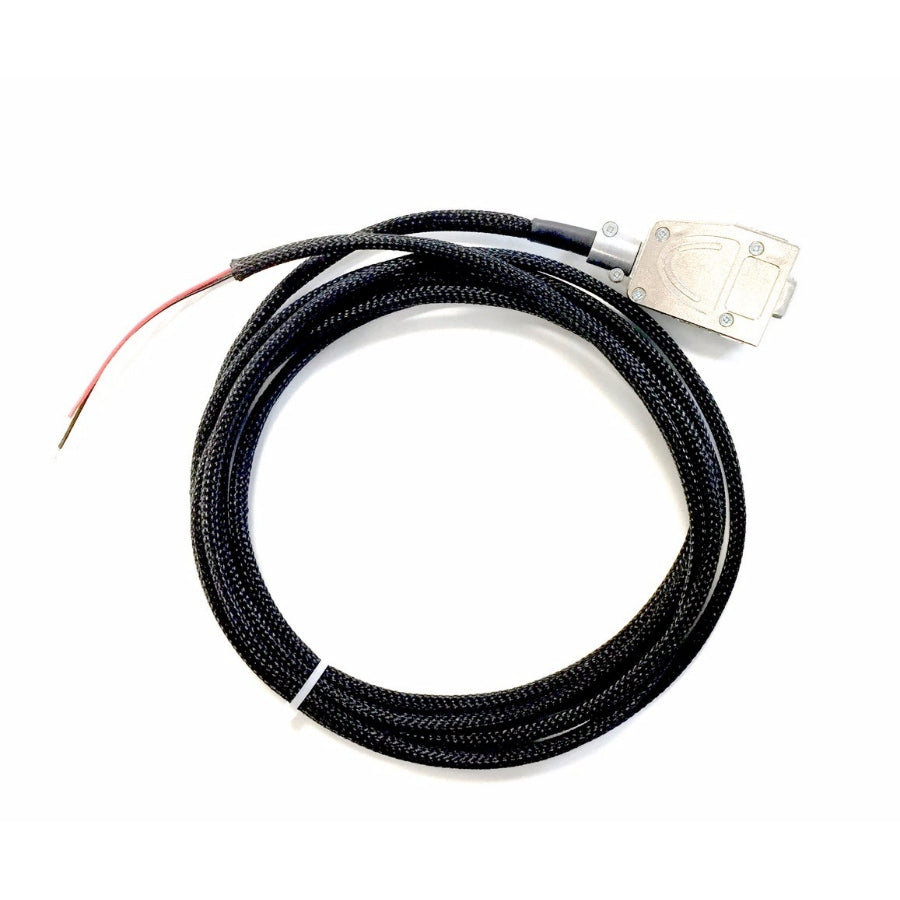

The AIR Avionics ACD-57 Power Supply Cable connects your AIR Control Display to aircraft power. Built to professional aviation standards using MIL spec TEFZEL wiring and precision crimp contacts, this cable is designed for reliable, long-term use in demanding flight environments.
Key Features
- D-SUB15HD connector to open ends (colour-coded red and black for easy identification)
- Quicklock backshell — compatible with the AIR Control Display (ACD-57)
- MIL spec TEFZEL cables for superior durability and heat resistance
- Professional-grade turned crimp contacts — extensible for custom installations
- 3m cable length for flexible routing in the aircraft
Technical Specifications
- Connector: D-SUB15HD with quicklock backshell
- Cable type: MIL spec TEFZEL
- Cable length: 3m
- Termination: Open ends, colour-coded (red/black)
- Contacts: Professional-grade turned crimp, extensible
Compatibility
Designed specifically for the AIR Avionics ACD-57 Air Control Display. The quicklock backshell ensures a secure, vibration-resistant connection at the display end.
In the Box
- Power supply cable x1 (3m)
