Description

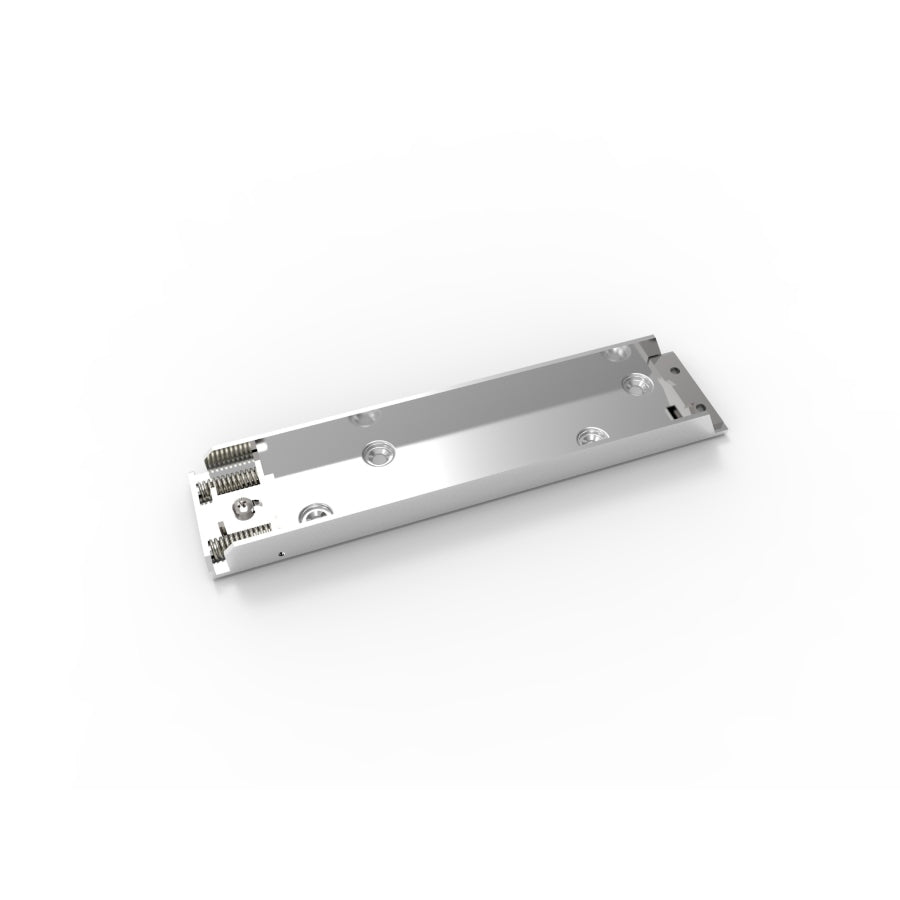

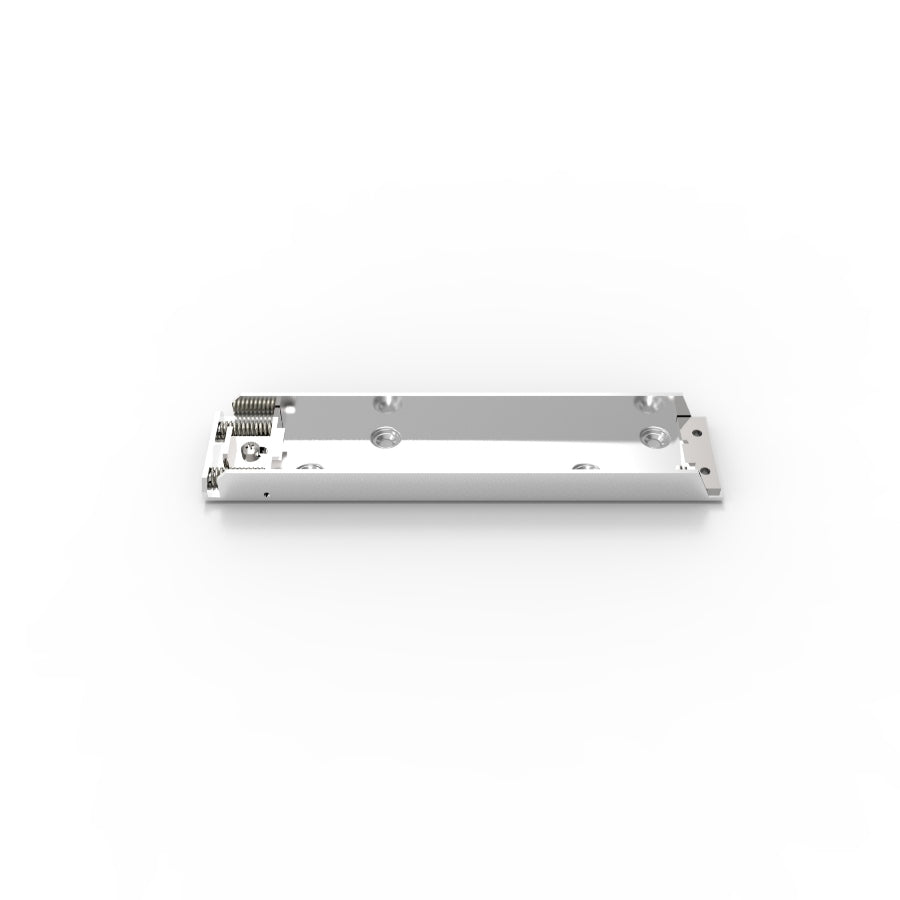

The AIR Avionics Mounting Frame is a spring-loaded cradle designed for easy installation and removal of AIR Avionics standard LRU modules, including AIR COM and AIR Traffic. Built to meet aviation environmental requirements per RTCA DO-160, it is certified for vibration, temperature, and shock — making it suitable for demanding flight environments.
Key Features
- Spring-loaded mechanism for quick, tool-free module mounting and unmounting
- Meets RTCA DO-160 aviation environmental standards (vibration, temperature, shock)
- Compatible with AIR Avionics standard LRU modules including AIR COM and AIR Traffic
- Compact and lightweight design
Technical Specifications

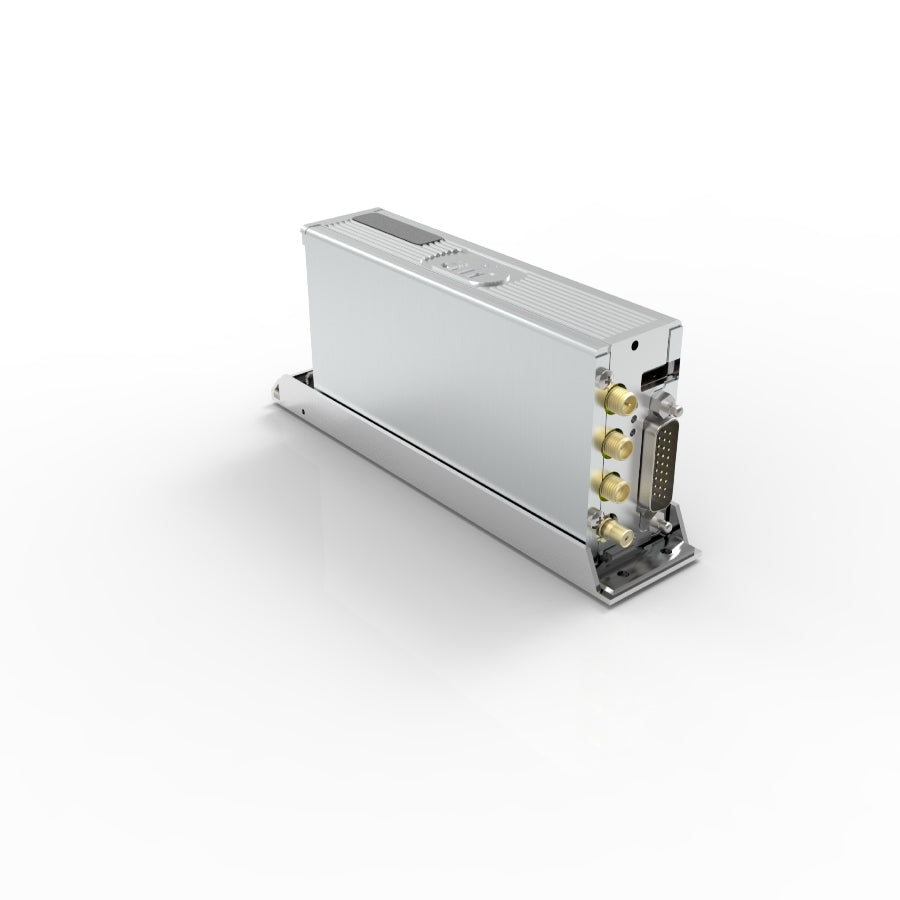

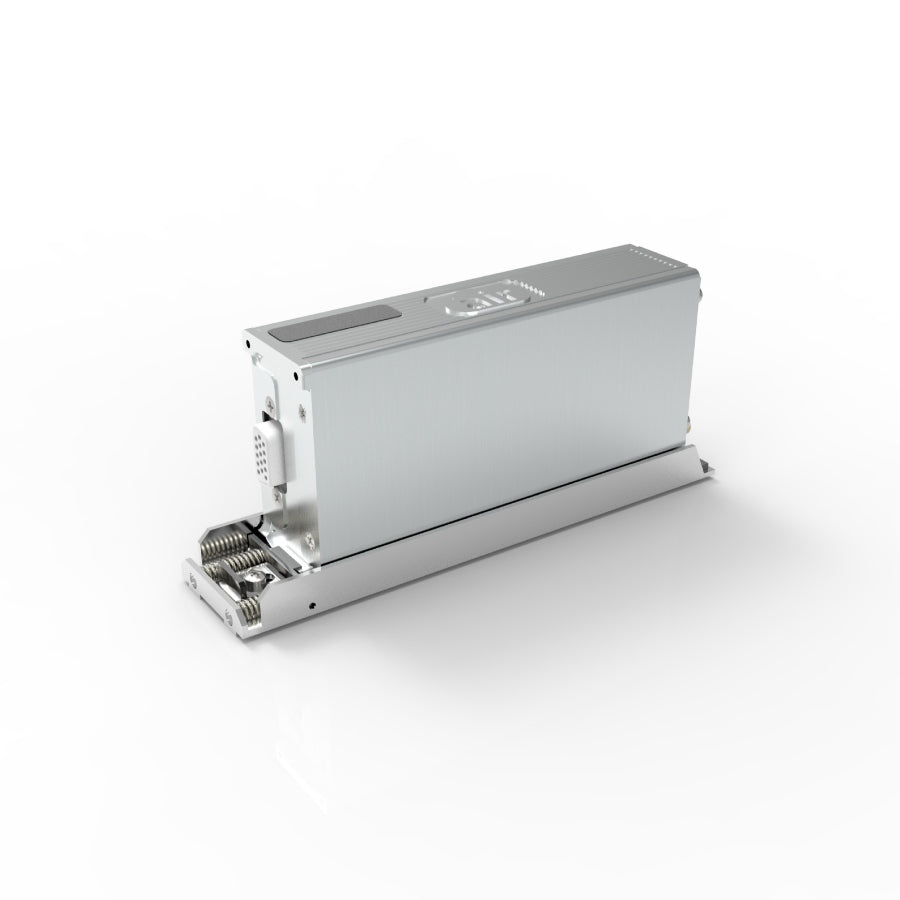

- Dimensions (L x W x H): 151mm x 34mm x 20mm (64.5mm height including device)
- Mounting: Four screws, M3 or M4 (not included)
- Weight: 5g
In the Box
- Mounting cradle x1
Mounting screws (M3/M4) are not included. Compatible with AIR Avionics standard LRU modules.
